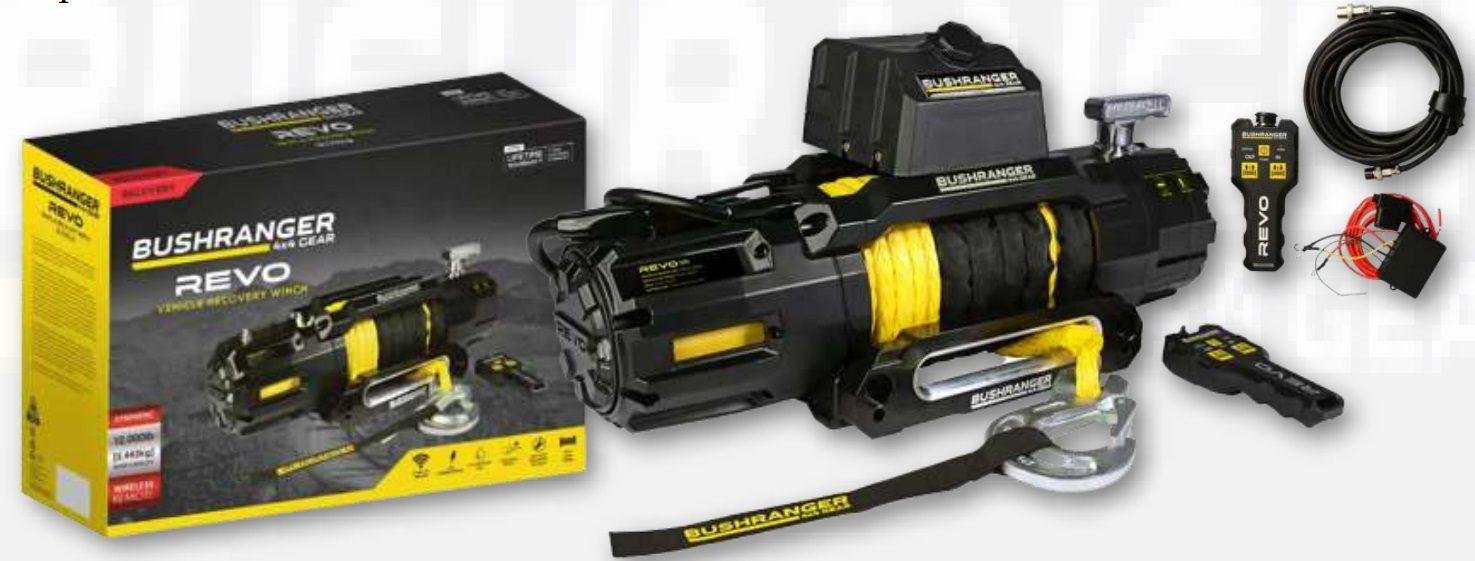

Description
REVO winches are designed to be strong, versatile, and ready for anything. Consistently developing and improving our products, Bushranger REVO is built with long-term reliability in mind. With a new and improved powder coating; rigorously tested in Australian facilities and real-world conditions. REVO is ready to be pushed to the extreme.
Specifications:-
➢Dimensions:- 602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
➢Rated Line Pull (single):- 12,000lbs (5,443kg)
➢Motor:- Series wound, 12V, 6.2HP (4.6kw)
➢Remote Control:- Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead) ➢Electrical:- Contactor IP67 500A
➢Gear Train:- 4 stage gear driven
➢Gear Ratio:- 171:1
➢Clutch (free spooling):- Rotating Ring Gear
➢Brake:- Gearbox Mounted, Proportional Friction Brake System
➢Drum Diameter/Length:- 63.5mm x 244mm
➢Mounting:- Bolt Pattern 254mm x 114mm
➢Rope:- 11mm x 24m Synthetic Rope
Mechanical Warranty:- Limited Lifetime
Electrical Warranty:- 7 Years
